New D-Series Servos From Hitec

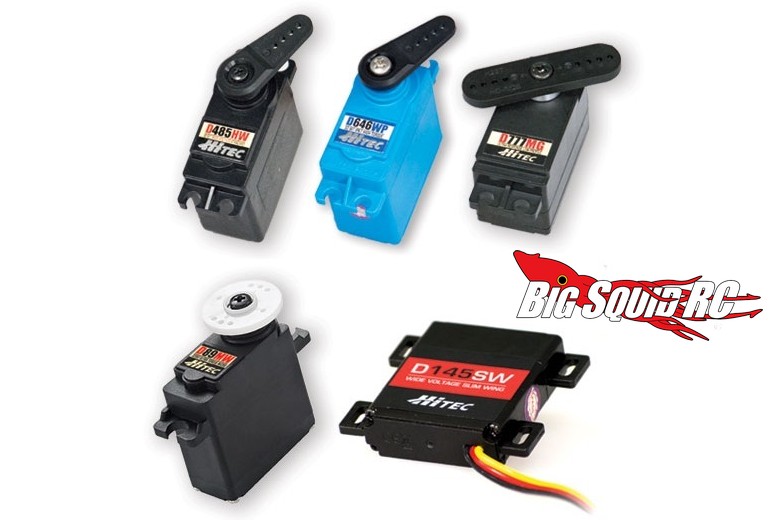

Just announced by Hitec are Five New Servos in their popular D-Series line-up. New are the D89MW, D145SW, D485HW, D646WP and D777MG, all of which feature 32 bit resolution and incredible digital performance.

For all you bashers out there, the 5646 has been replaced by the IP-67 rated D646WP. The D145SW is made for slim applications in aircraft. The new low profile D777MG has evolved from Hitec’s 7775MG & 8775M, while the sport class D485HW now replaces the 5485HB & 5495BH. Lastly, the micro-sized D89MW produces solid power by using a coreless motor.

New servos

D89MW
#36089 – $62
Max voltage – 7.4
Speed – 0.11
Torque – 118 oz/in
Dual bearings

D145SW
#36145 – $59
Max voltage – 7.4
Speed – 0.14
Torque – 83 oz/in
Dual bearings

Replacement servos

D485HW
#36485 – $16
Max voltage – 7.4
Speed – 0.15
Torque – 103 oz/in
Top bearing

D646WP
#36646 – $54
Max voltage – 7.4
Speed – 0.17
Torque – 180 oz/in
Dual bearings

D777MG
#36777 – $74
Max voltage – 6.0
Speed – 0.07
Torque – 90 oz/in
Dual bearings

You can hit up This Link for full details over on Hitec’s website, or you can Click Here to read more Hitec news on BigSquidRC.
