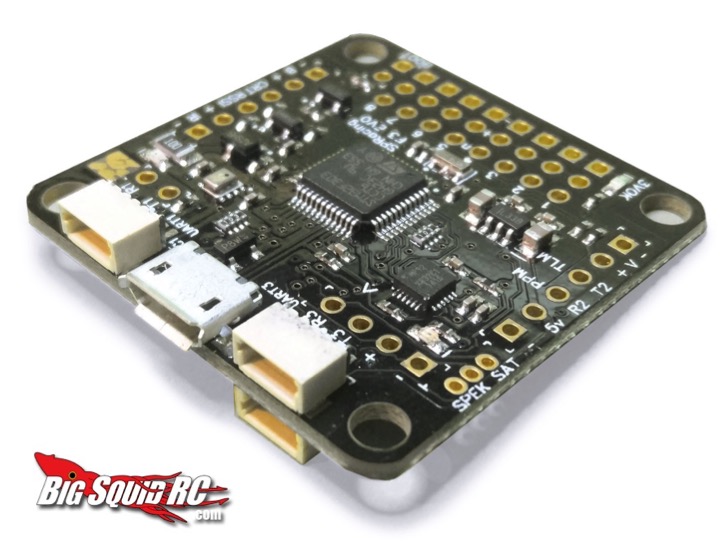

SP Racing F3 EVO Flight Controller for FPV Racing Quads

New from Seriously Pro Racing comes the long awaited SP Racing F3 EVO Flight Controller. This mini-quad flight controller was designed to give awesome flight performance in a stackable race-ready package. It has the latest sensors, race timing & logging technology backed by excellent connectivity options at a wallet-friendly price.

The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards and to set the benchmark for a fully-featured STM32F3-based mini board. Check out the specs:

  • 36x36mm board with 30.5mm mounting holes
  • Weight ~5 grams
  • STM32F303 CPU, 72Mhz inc FPU
  • MicroSD card slot (SD/SDHC, upto 32GB)
  • MPU9250 accelerometer/gyro/compass (connected via SPI)
  • BMP280 barometer
  • 1 IR LED and unique code for race transponder
  • MicroUSB socket for configuration and ESC programming
  • 3 LEDs for 5V, 3V and STATUS (Green, Blue, Red)
  • Supplied with straight and right-angled pin headers.
  • Copper-etched Cleanflight logo
  • 8x 3pin though-holes for pin headers for ESC/Servo connections
  • 1x 2pin though-holes for pin headers for UART1 RX/TX
  • 1x 6pin though-holes for pin headers for UART2/PPM/Telemetry/LiPo (for standard SerialRX/SBus/PPM lead)
  • 1x 4pin though-holes for pin headers for UART3
  • 1x 6pin though-holes for pin headers for IR LED/LED Strip, RSSI, Current Monitoring, and Buzzer connections
  • 1x 3pin though-holes for JST-ZH connector for Spektrum Satellite receivers (connector supplied).
  • 1x 4pin top mounted, JST-SH socket for I2C
  • 1x 4pin top mounted, JST-SH socket for UART2/PPM
  • 1x 4pin bottom mounted JST-SH socket for SWD debugging
  • 1x 2pin though-holes for BOOT jumper.

The SP Racing F3 EVO is available for pre-order right now at this link from GetFPV for $34.99
