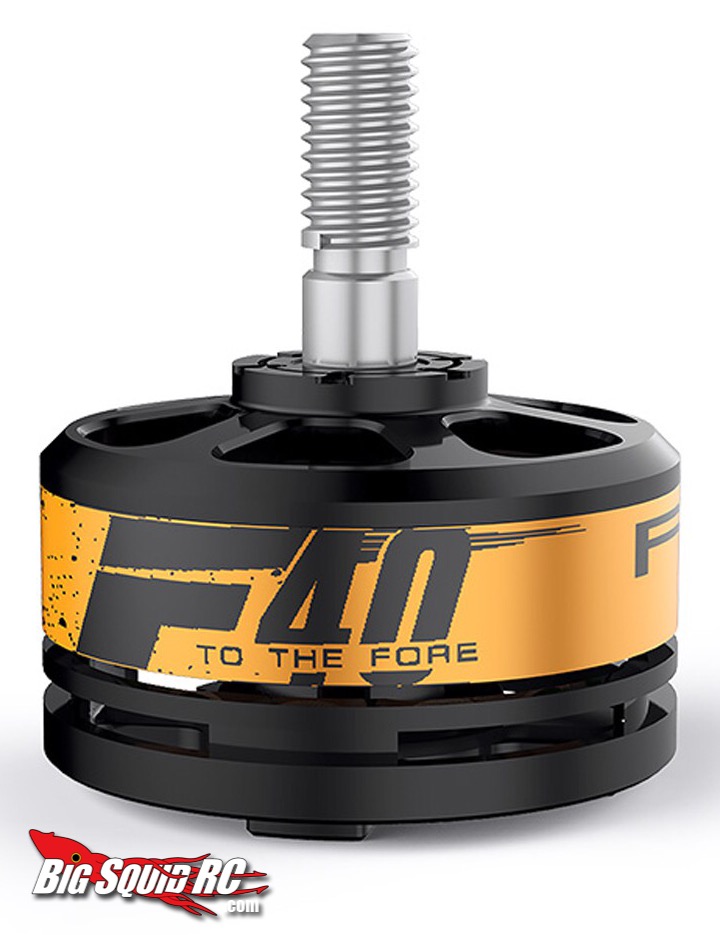

Tiger Motor F40 FPV Series Motors

New from Tiger Motor comes the F40 2300v FPV Series Motor. These motors were designed specifically for FPV racing and are built to take a punch. They utilize a steel shaft and unique structural design to help prevent deformation and breakage upon crashing. The motors also provide excellent heat dissipation. A must for power-hungry mini quads. Here’s a few specs:

  • KV: 2300
  • Configuration: 12N14P
  • Stator Diameter: 22mm
  • Stator Length: 5mm
  • Shaft Diameter: 4mm
  • Motor Dimensions (Dia.*Len): Φ27.5×17.7mm
  • Weight (g): 27g
  • ldle current(10)@10v(A): 0.8A
  • No.of Cells(Lipo): 3-4S
  • Cable length: 100mm

The F40’s are sold in sets of two and are priced at $49.90. Get yours right now at this link from GetFPV.

Want more FPV news and reviews from Big Squid? Click right here.
