Injora Coreless High Torque Micro Servo for the TRX-4M

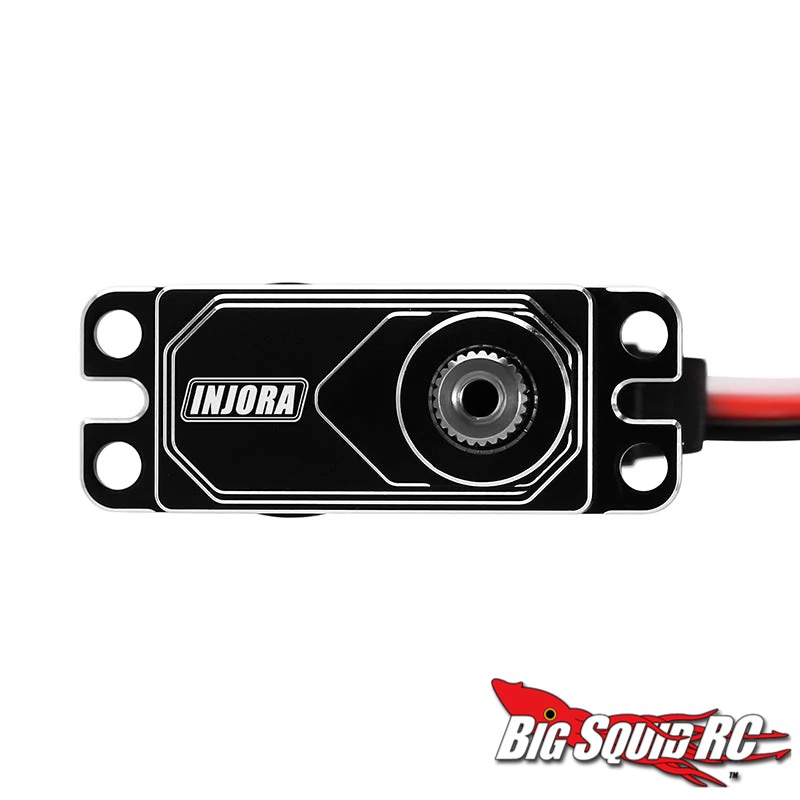

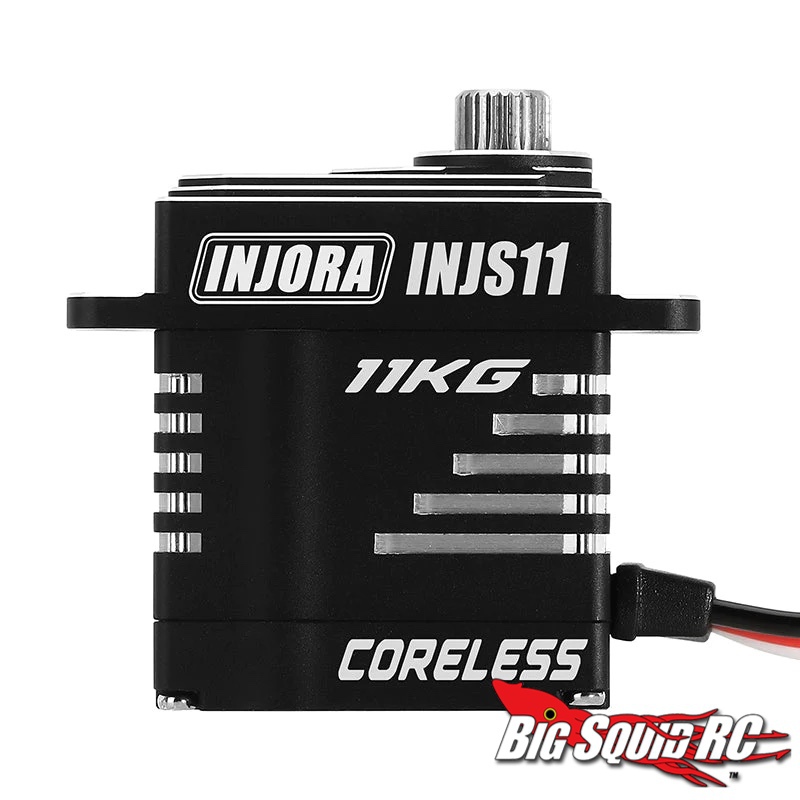

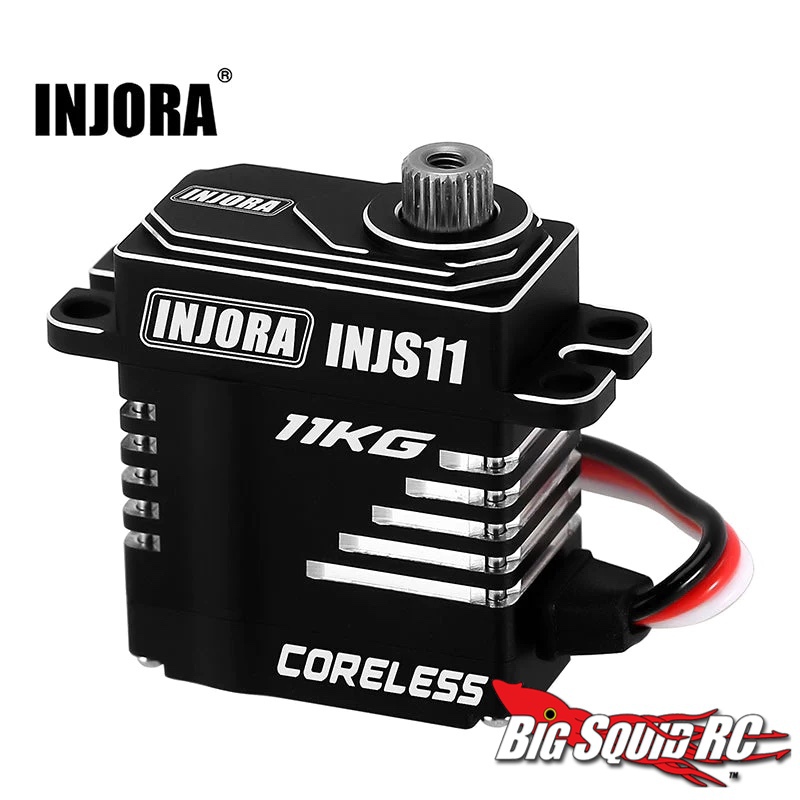

Injora 11kg Coreless High-Torque Micro Servo for the Axial SCX24

When it comes to trail truck performance, steering power is at a premium, no matter what scale your rig may be. Injora’s Coreless, High-Torque Micro Servo for the SCX24(#INJS11–24BK) offers an improved outer case design and solid performance specs to help you tackle any terrain, indoors or out.

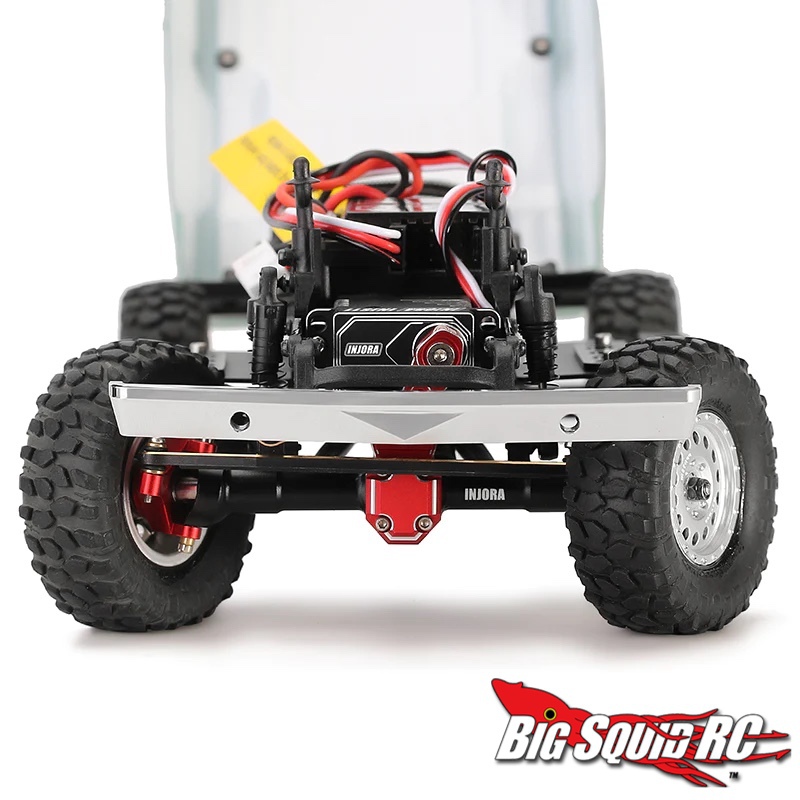

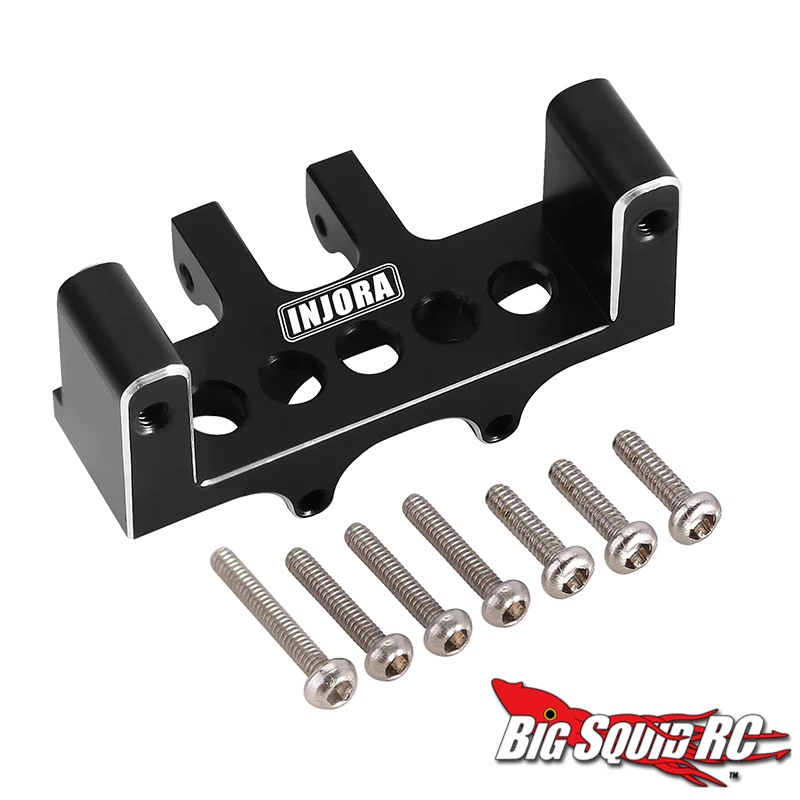

Featuring an aluminum case, metal gears, and a coreless motor, this servo looks like a great upgrade option for the TRX-4M. It’s worth noting that this servo requires a special servo mount and servo horn, both of which are available through Injora.

Injora 11kg Coreless High-Torque Micro Servo Specs:

  • Operating Voltage: 6V-8.4V
  • Gears: Stainless steel
  • Spline: 25T
  • Bearings: 2BB
  • Length: 23mm
  • Width: 12mm
  • Height: 26.5mm
  • Speed:
    • 0.106″/60° @ 6V
    • 0.085″/60° @ 7.4V
    • 0.074″/60° @ 8.4V
  • Torque:
    • 8kg-cm/111oz-in @ 6V
    • 9.5kg-cm/132oz-in @ 7.4V
    • 11kg-cm/153oz-in @ 8.4V

This Coreless High-Torque Micro Servo is priced at $49.99 and is available through
