Injora Coreless High Torque Micro Servo for the TRX-4M

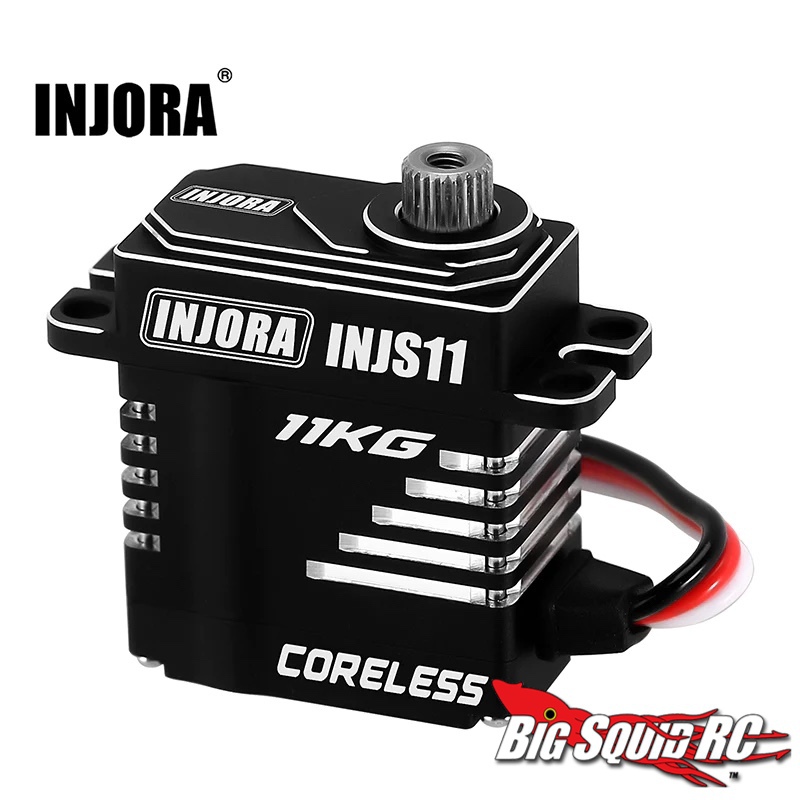

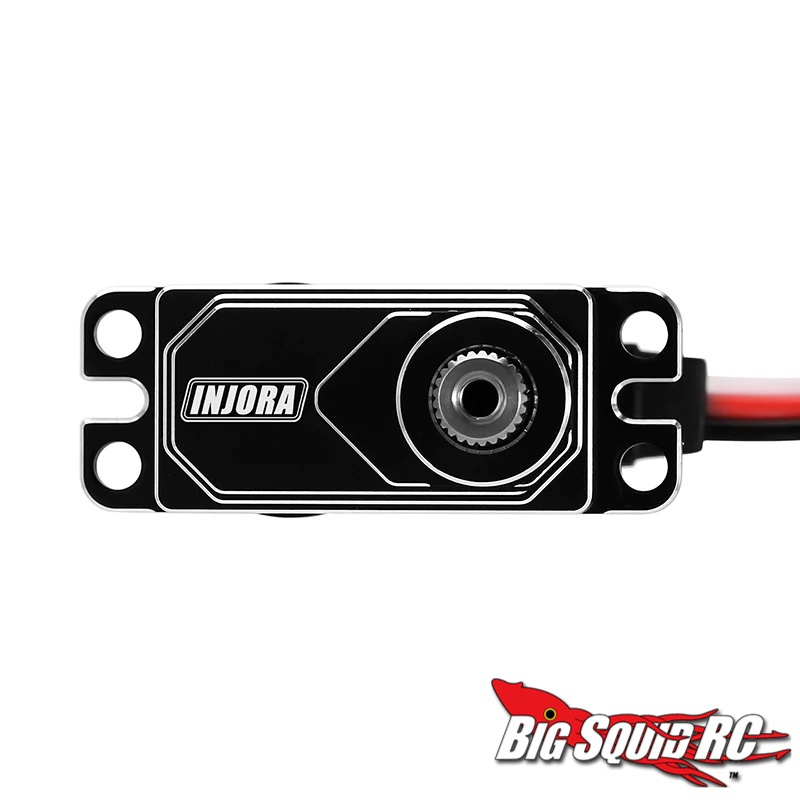

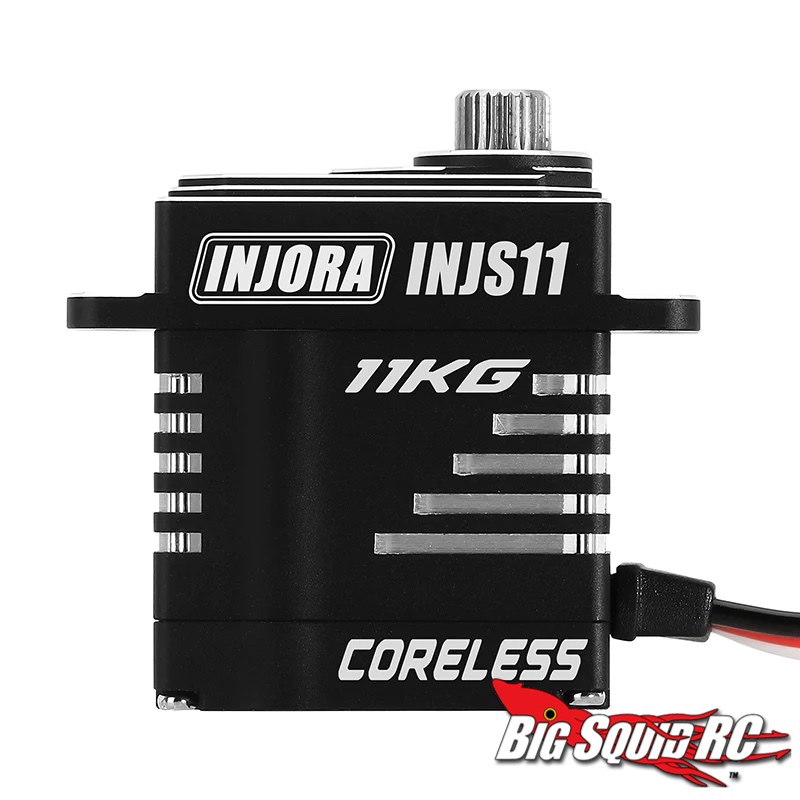

Injora 11kg Coreless High-Torque Micro Servo for the Traxxas TRX-4M

If you need more steering performance from your Traxxas TRX-4M, take a peek at Injora’s Coreless, High-Torque Micro Servo (#INJS11-4MBK). With an improved outer case design and solid performance specs, this servo should help you navigate tricky and treacherous terrain with your tiny trail truck.

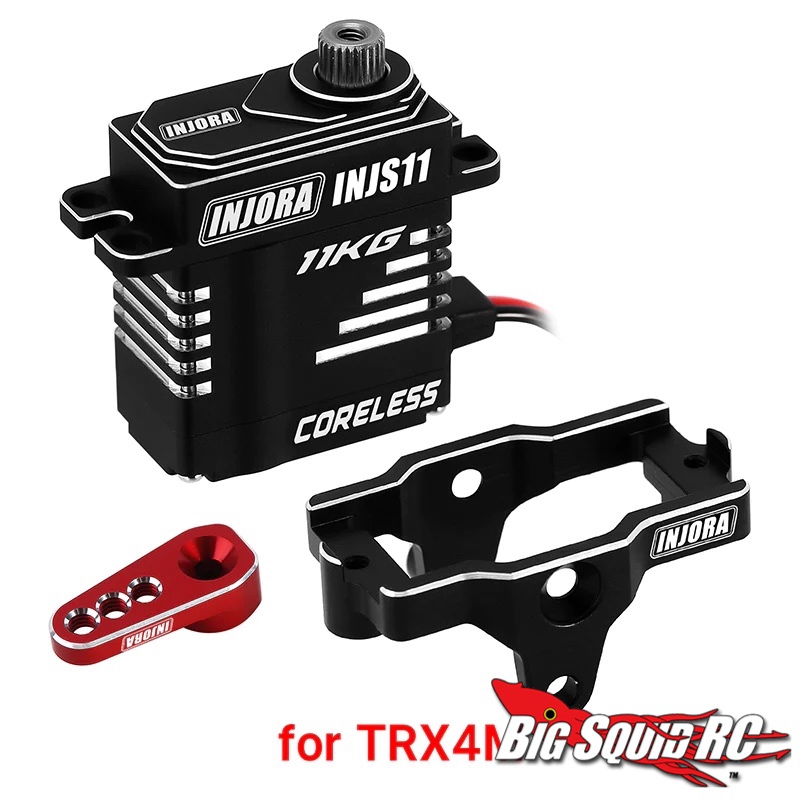

Featuring an aluminum case, metal gears, and a coreless motor, this servo looks like a great upgrade option for the TRX-4M. It’s worth noting that this servo requires a special servo mount and servo horn, both of which are available through Injora.

Injora 11kg Coreless High-Torque Micro Servo Specs:

  • Operating Voltage: 6V-8.4V
  • Gears: Stainless steel
  • Spline: 25T
  • Bearings: 2BB
  • Length: 23mm
  • Width: 12mm
  • Height: 26.5mm
  • Speed:
    • 0.106″/60° @ 6V
    • 0.085″/60° @ 7.4V
    • 0.074″/60° @ 8.4V
  • Torque:
    • 8kg-cm/111oz-in @ 6V
    • 9.5kg-cm/132oz-in @ 7.4V
    • 11kg-cm/153oz-in @ 8.4V

This Coreless High-Torque Micro Servo is priced at $49.99 and is available through
