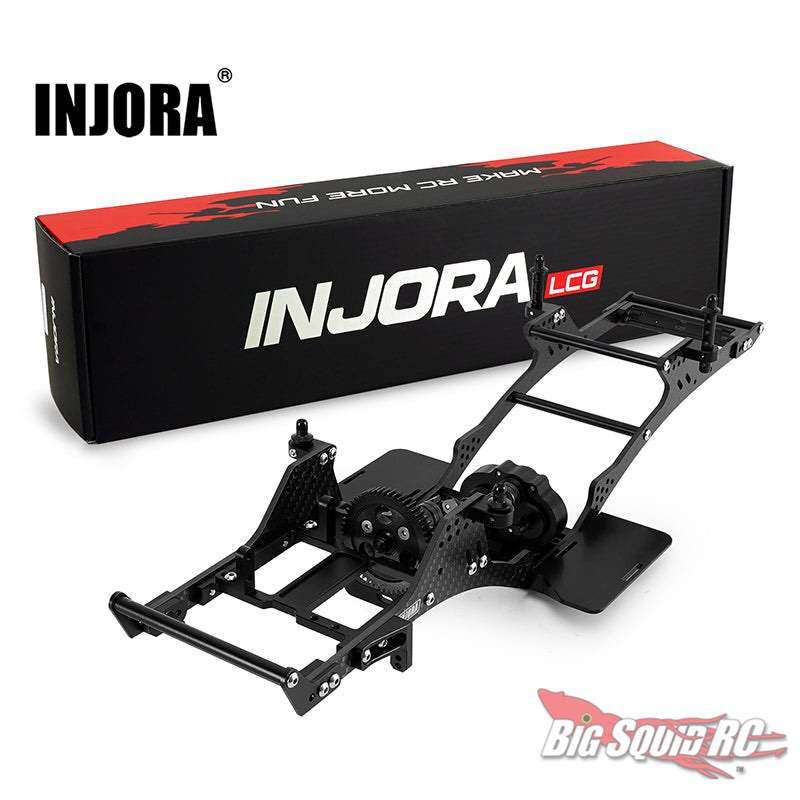

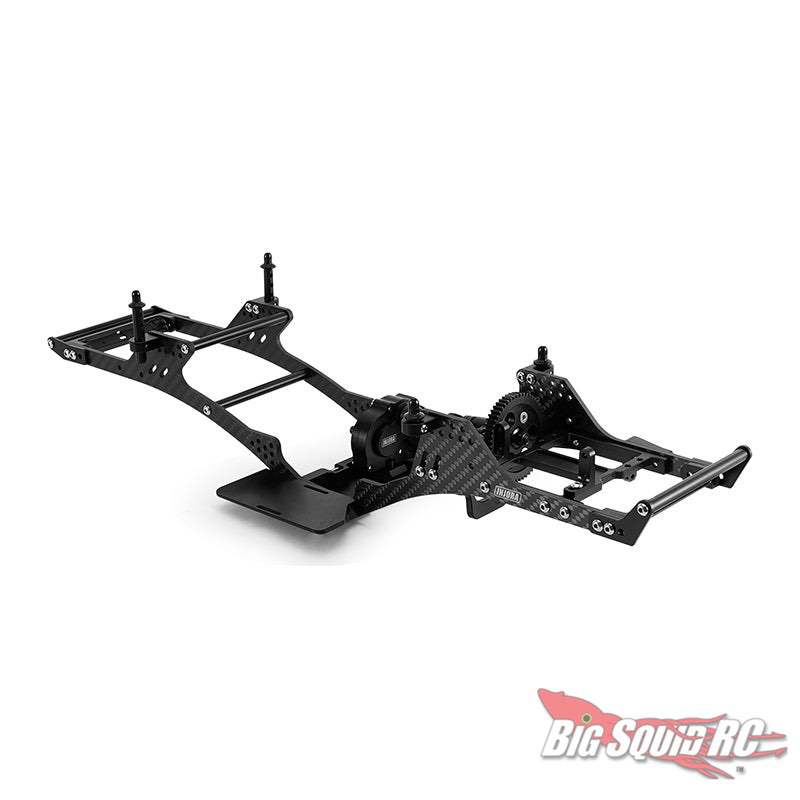

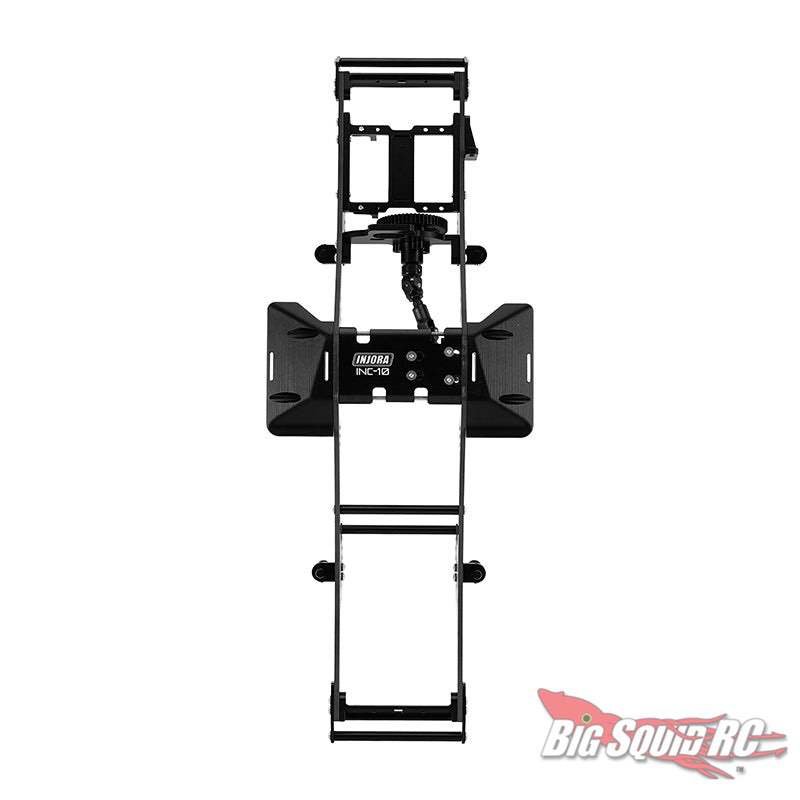

Injora LCG Carbon Fiber 1/10 Crawler Chassis Kit with Front-Mounted Transmission
New from Injora is its LCG Carbon Fiber 1/10 Crawler Chassis Kit with Front-Mounted Transmission. Designed for creative custom crawler builds, this lightweight chassis offers a budget-friendly way to assemble a one-of-a-kind R/C crawler.

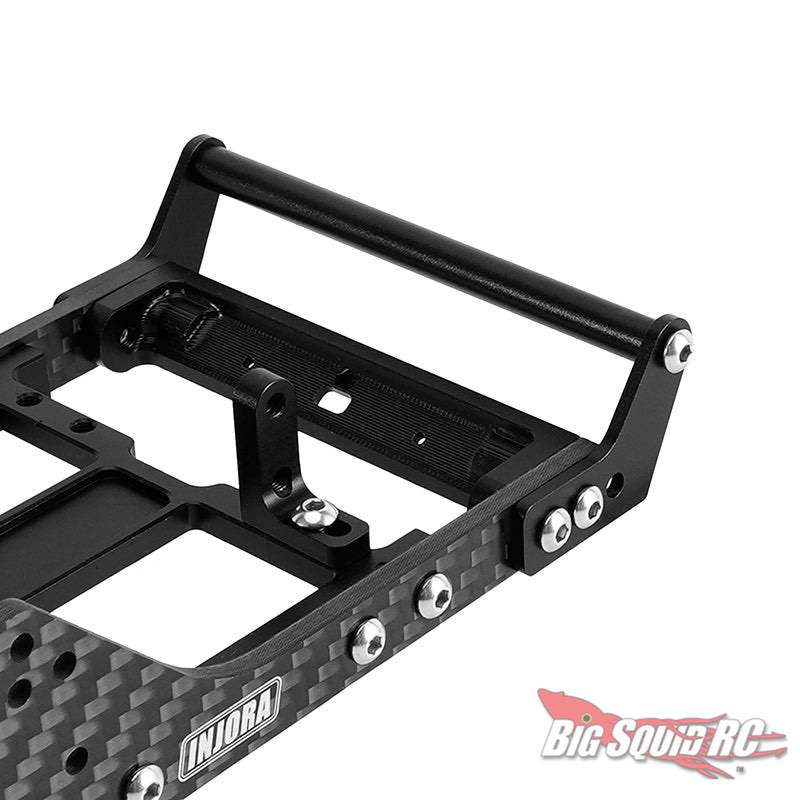

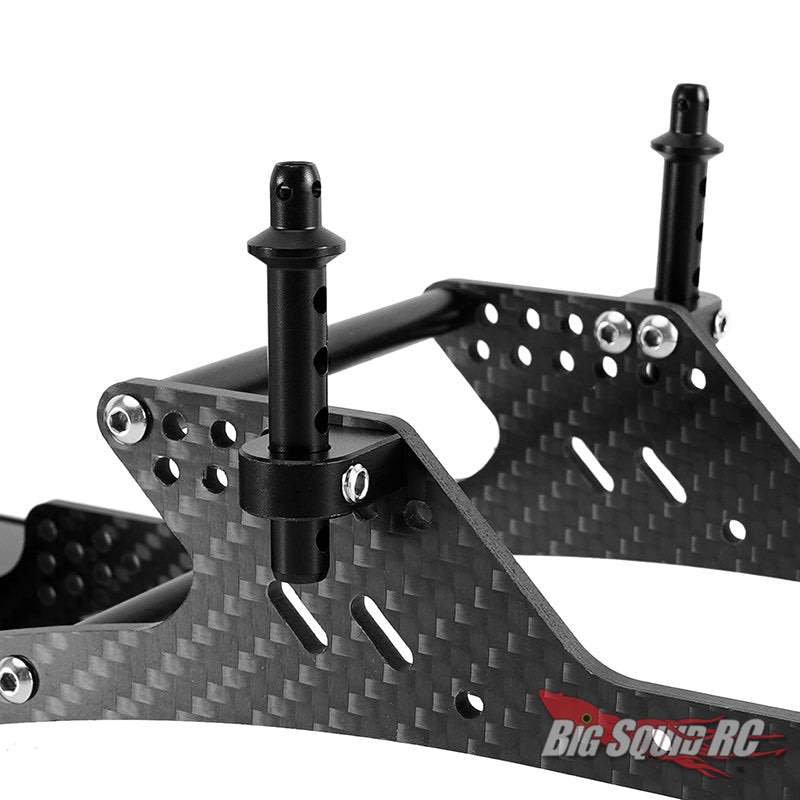

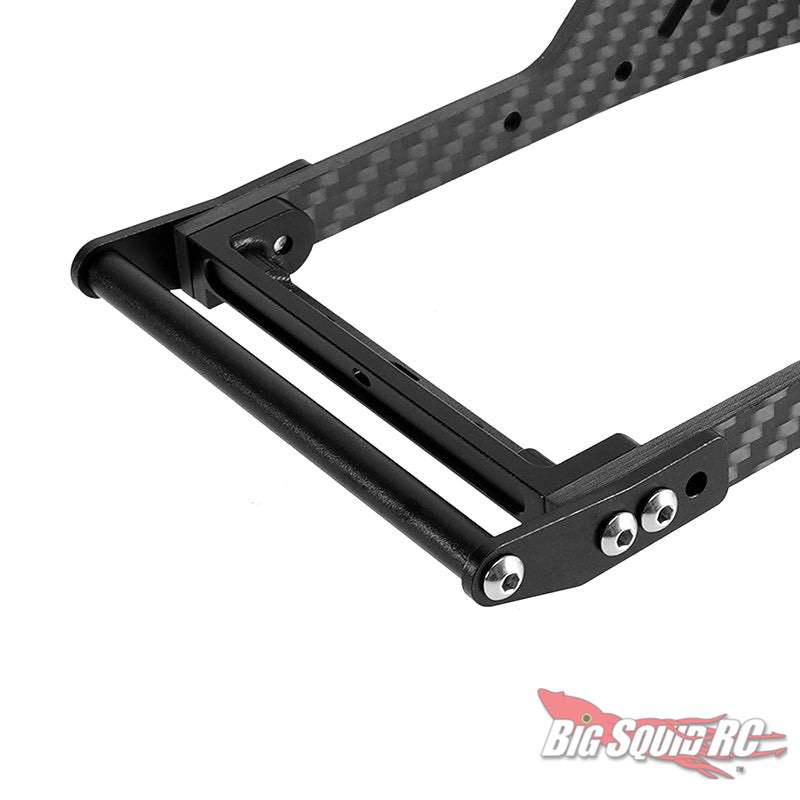

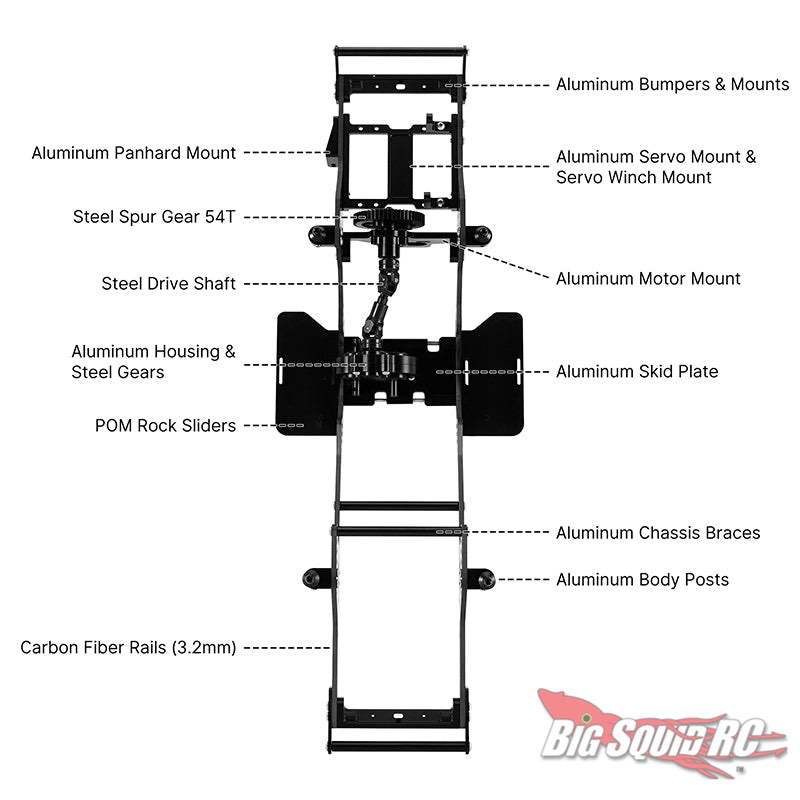

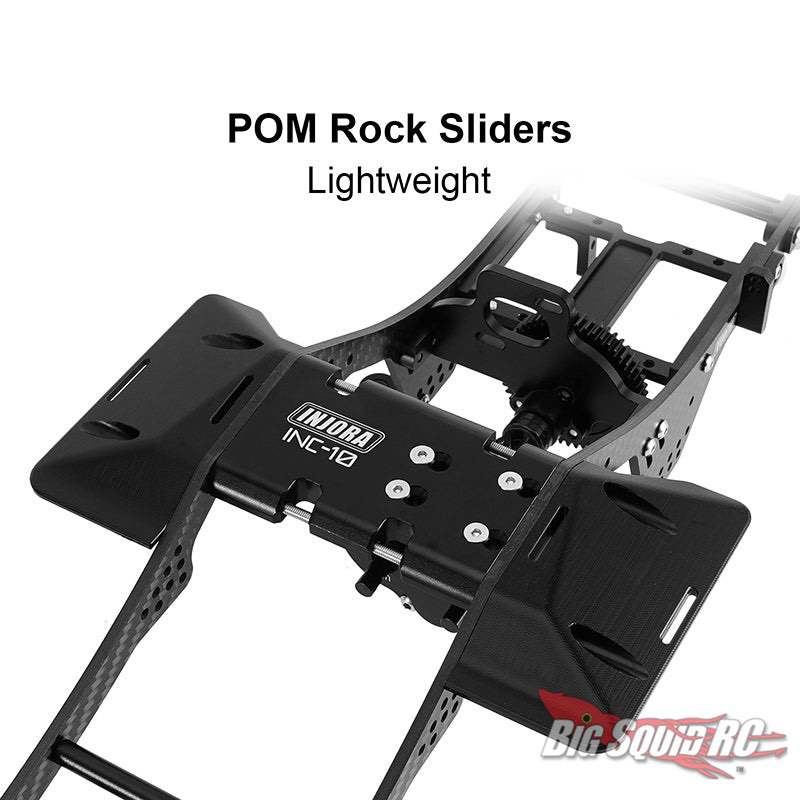

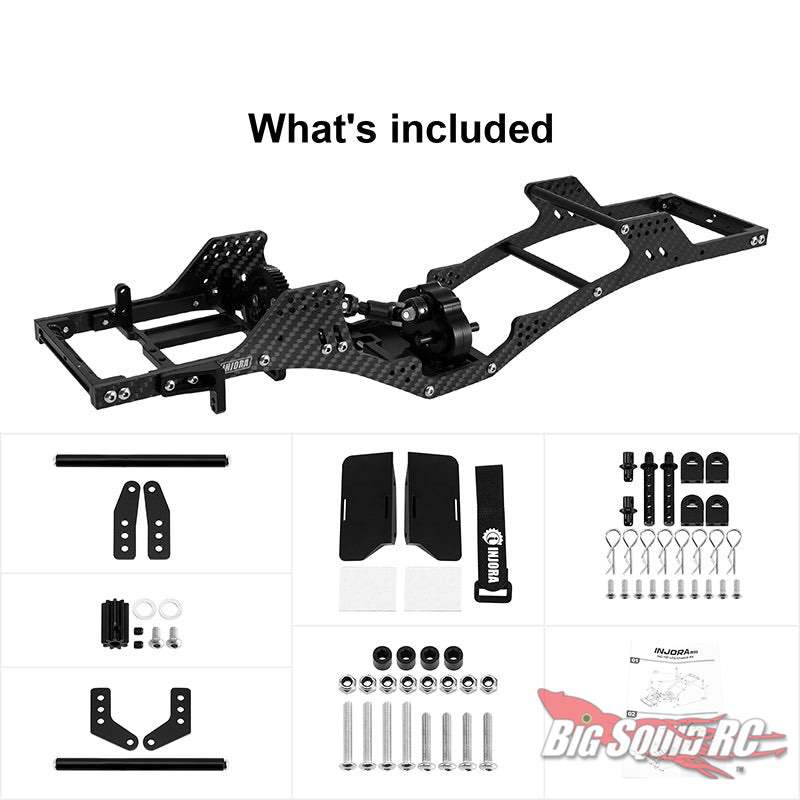

This low center of gravity (LCG) chassis kit features carbon fiber rails and braces, POM rock sliders, and select aluminum components, while the transfer case features an aluminum enclosure. All necessary installation hardware is included with this chassis kit.
Chassis Specs:
- Part Number: INC-10F
- Material: Carbon Fiber, Aluminum (see pictures for details)
- Skid Angle: 5°
- Rails Thickness: 3.2mm
- Dimensions: 429.5*78mm
- Total Weight: Approx.463g
- Servo Mounting Method: CMS (Chassis Mounted Servo)

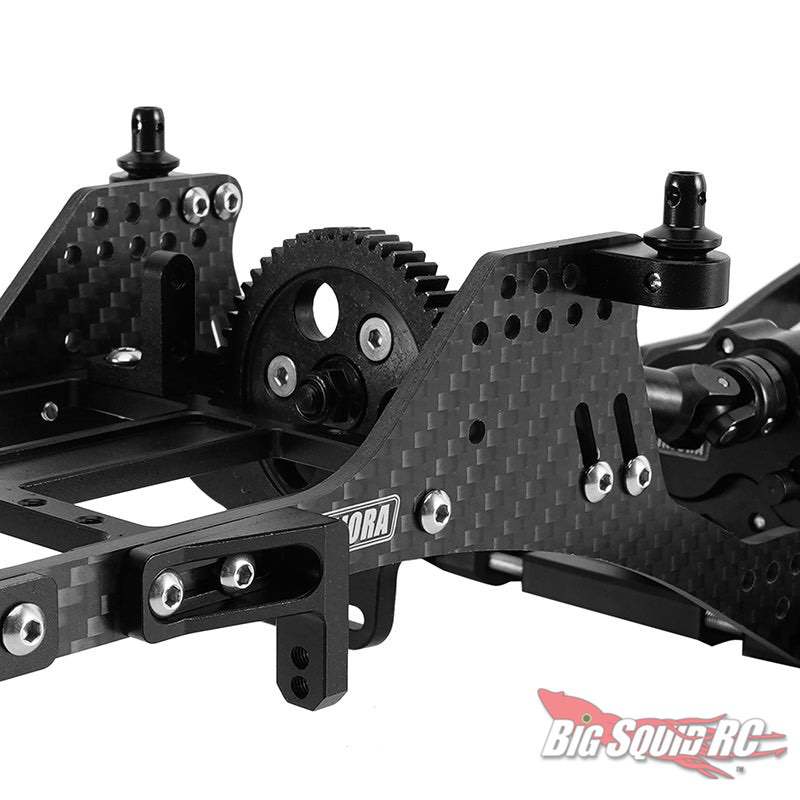

- Spur Gear: 0.8mod 54T (Hardened Steel)
- Motor Pinion: 0.8mod 11T (Fit 3.17mm shaft motors)

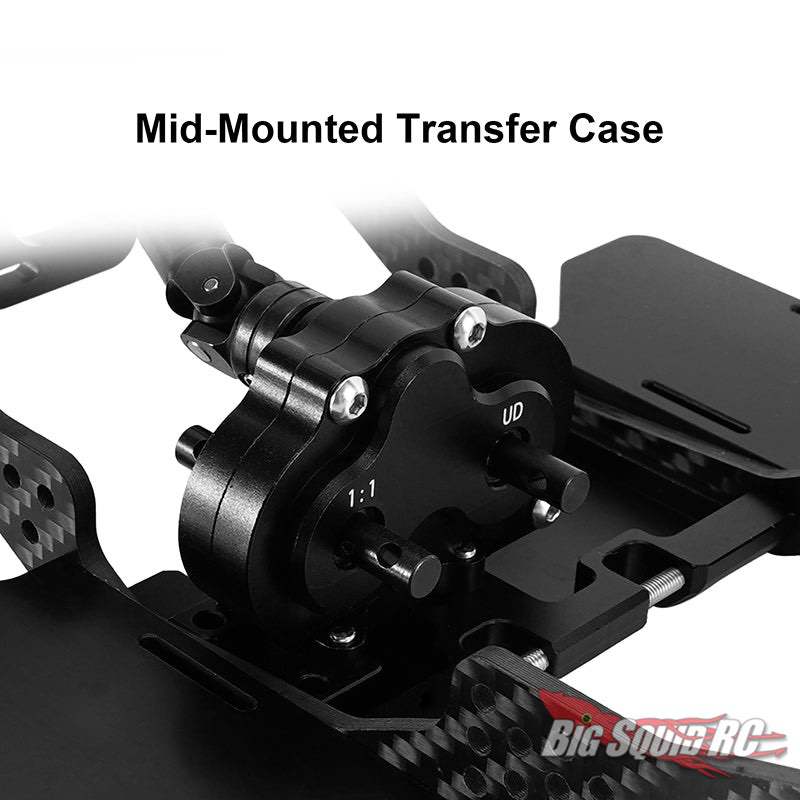

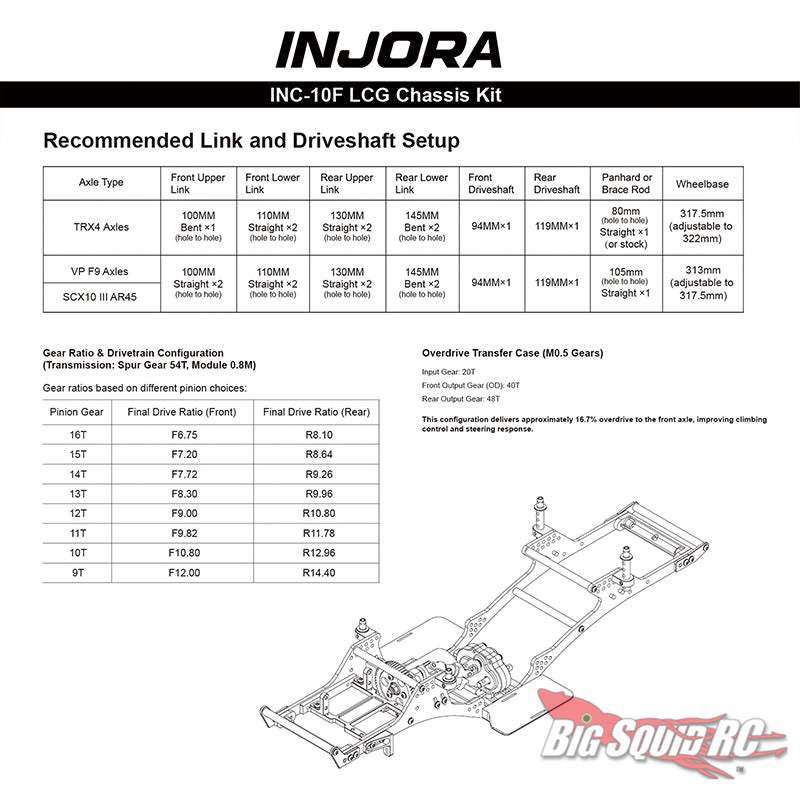

**Transfer Case Specs: **
- Housing Material: Aluminum
- Gears Material: Hardened Steel
- Input Gear: 20T
- Front Output Gear (OD): 40T
- Rear Output Gear: 48T
Priced at $99.99, this LCG Carbon Fiber 1/10 Crawler Chassis Kit with Front-Mounted Transmission is available at injora.com.
