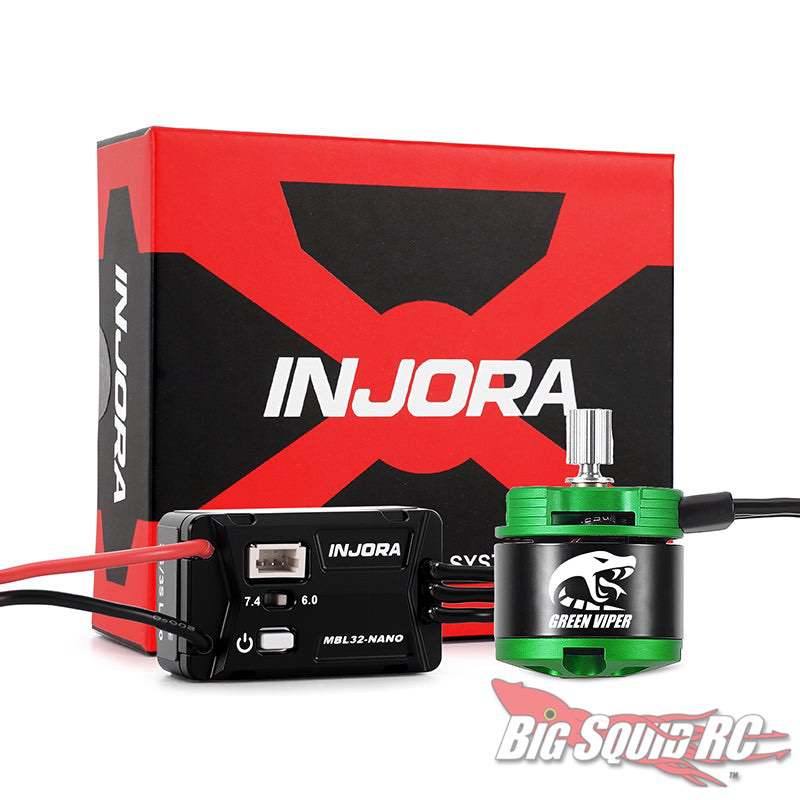

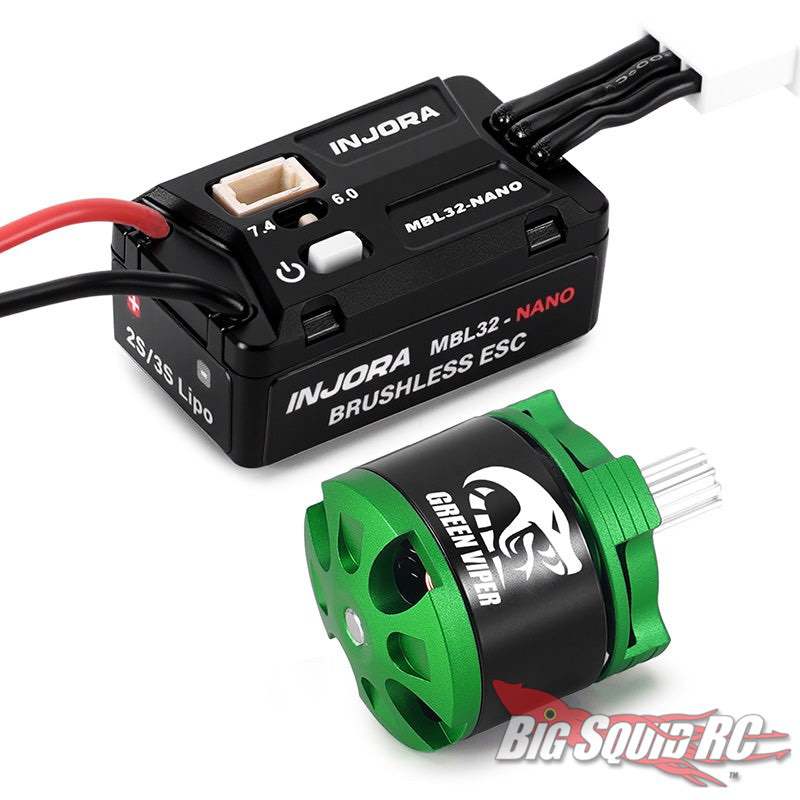

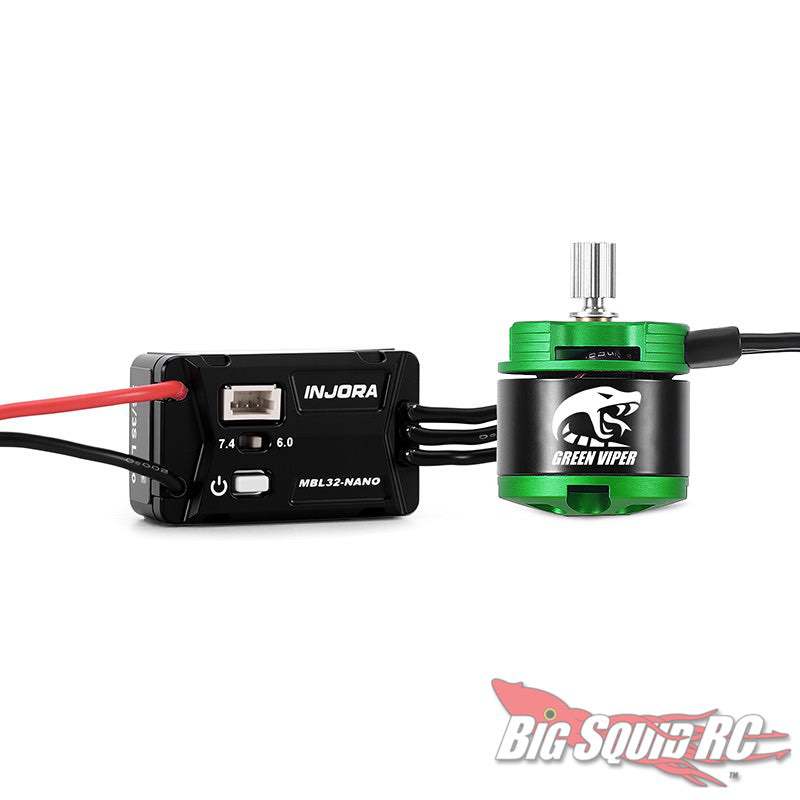

Injora MBL32-NANO Brushless ESC & 1616 4800KV Green Viper Motor for the SCX30

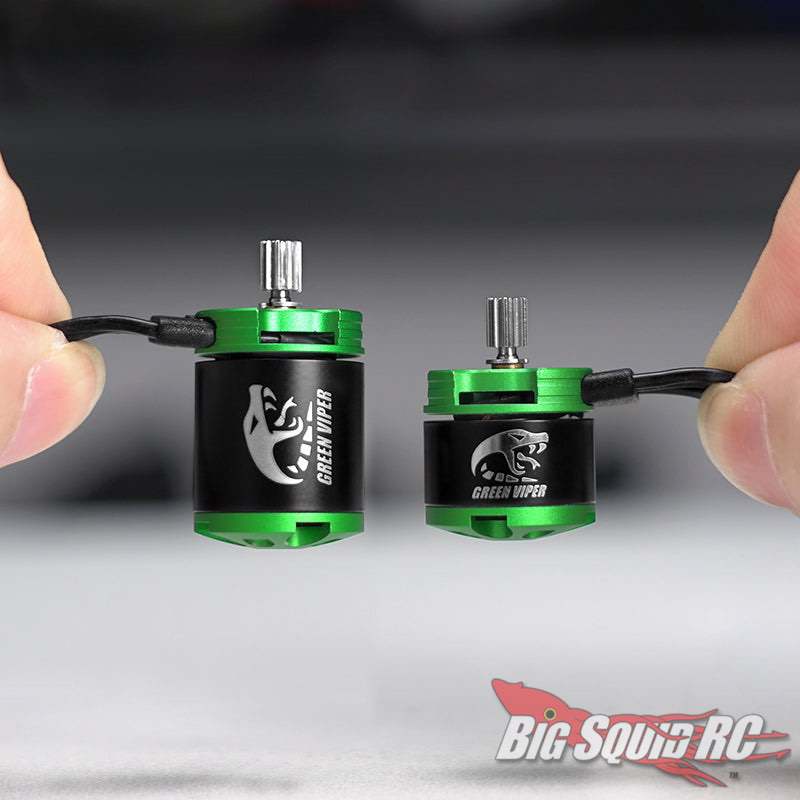

Injora has introduced its second brushless motor for the Axial SCX30, and this one packs a punch. While the original Green Viper motor was no slouch, 1616 4800KV Green Viper is not only smaller, but it has a higher KV rating for faster overall top speed.

Paired with the MBL32-NANO Brushless ESC, this new power setup should transform your micro R/C crawler into a performance-focused dynamo.

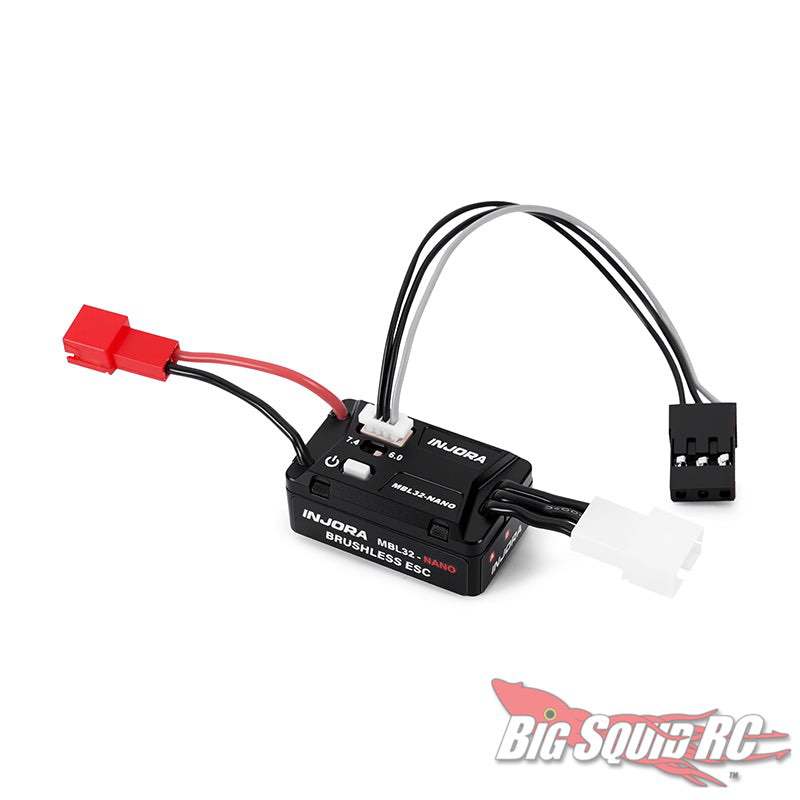

ESC Specs:

• Part Number: MBL32-NANO
• Waterproof: Yes
• Continuous Current: 25A
• Peak Current: 45A
• LiPo Cells: 2S LiPo
• BEC Current: 3A
• Output: 6.0V/7.4V adjustable
• Dimensions (L×W×H): 25.5×15×12mm
• Weight: 0.34oz (9.5g)
• Compatible Motors: INJORA 1616/1621/1721

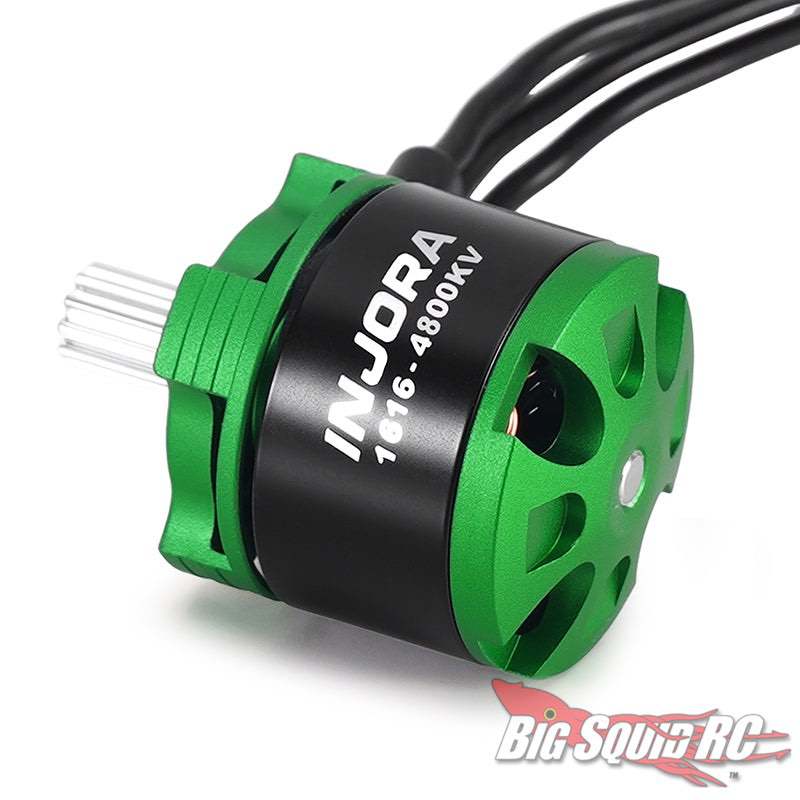

Motor Specs:

• Model Number: 1616
• Motor Type: Sensorless Brushless Outrunner
• Waterproof: Yes
• Operating Voltage: 7.4V (2S LiPo)
• RPM/Volt: 4800KV
• Motor Slots: 9
• Motor Poles: 12
• No-Load Current (7.4V): 0.8A
• Max Current: 10A
• Motor Connectors: PH2.0 3-pin

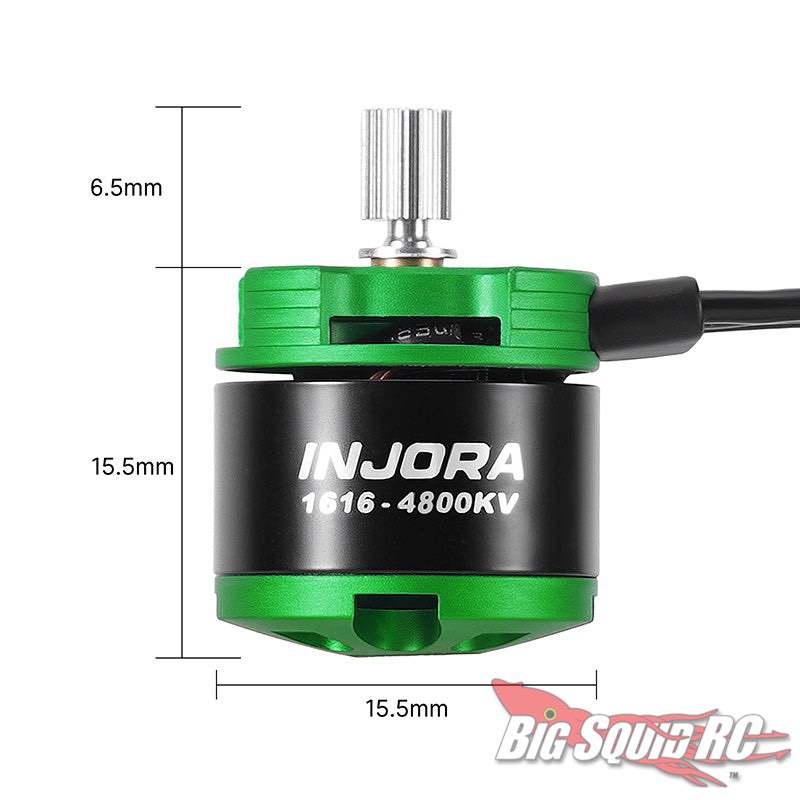

• Dimensions: Φ15.5×15.5mm
• Motor Output Shaft: Φ1.7mm
• Motor Pinion: 0.3mod 11T
• Lead Length: 65mm
• Weight: 9.7g

The MBL32-NANO Brushless ESC & 1616 4800KV Green Viper Motor for the SCX30 is priced at $61.99 and is available at injora.com.
