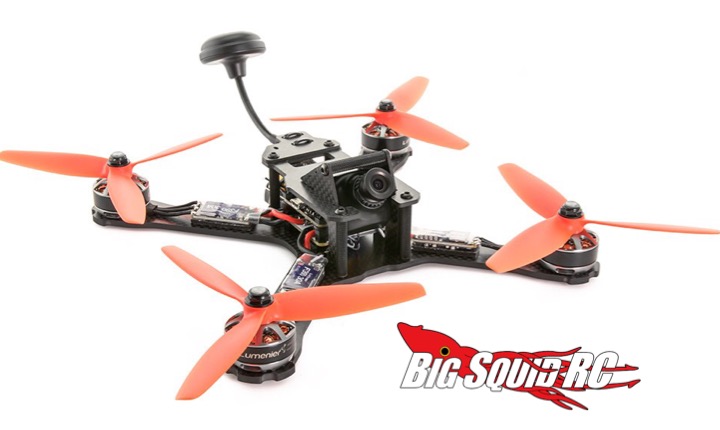

QAV-X Charpu Edition Racing Quadcopter

Remember last year when I said x-frames will take over the drone racing and freestyle scene? Yup. Just call me Nostradamus… Nostraquadmus? Anyway, check out the new QAV-X Charpu from Lumenier! Backed by one of the (if not THE) most popular pilots in FPV, Carlos Puertolas, aka Charpu, this new frame sports classic x-geometry coupled with Lumenier’s always-high-quality carbon fiber and hardware. Check out some specs and features!

  • Full 3K Carbon Fiber airframe featuring a solid 4mm main plate.
  • Dual purpose FPV and HD camera mounting solution.
  • Compact size for 5″ propellers, 214mm motor to motor.
  • Black Oxide steel screws
  • Easy grip black anodized spacers
  • Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).
  • “Bumpers” on the end of the arms to protect the motor during a crash, just like the QAV250.
  • Included Lumenier 4Power power distribution board and XT-60 Pig-Tail to power ESCs and FPV flight electronics. The PDB can optionally be outfitted with a Pololu 12v or 5v voltage step-down (Pololu board not included).
  • LiPo battery protection plate included.
  • Designed around popular 26mm sized cams in cases such as the Lumenier CM-650 or HS1177.
  • Support to carry HD camera at 35 degree angle(such as the GoPro 4, Mobius, etc).
  • Lightweight and rigid

The QAV-X Charpu is available to preorder from GetFPV at this link and can be had for $74.99 for the 3mm thickness or $89.99 for the 4mm.
