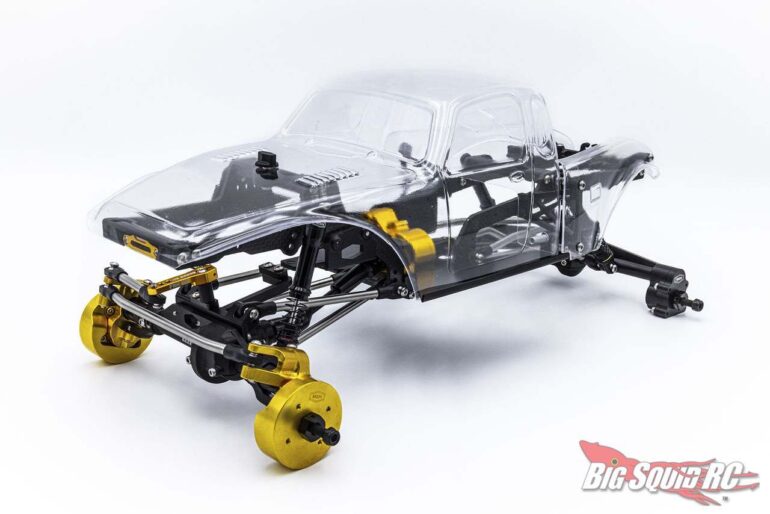

REEFS RC XP10 Plague Founder’s Edition Crawler Kit
The team at REEFS RC has launched what might be their biggest project to date: the XP10 Plague Founder’s Edition Crawler Kit. This chassis kit is geared toward performance-minded drivers, offering an array of features designed to keep this rig planted while out on the rocks.
The XP1 Plague Founder’s Edition Kit uses REEFS 199 Portal Axles that are paired with a chassis design that keeps the overall center of gravity low. It’s an excellent combination of ground clearance and stability that should help drivers navigate some of the trickiest terrain imaginable.
Along with REEFS’ own portal axles, this kit includes other REEFS-designed items like their XP Shocks, the XPT3 Transmission, the XP Chassis, and a clear Plague two-piece body. Other highlights include brass c-hub weights, a brass transmission case, and a brass servo horn.
Since this is a “Founder’s Edition” model, you get a few extras including a numbered, tactical carrying case.
Reefs 199 Portal Axles
- Housing: Machined Aluminum
- Gears: Machined, Hardened Steel Throughout
- Steering Angle: Up to 60∘
- Axle Shafts: Machined, Hardened Steel, 5mm Pinned
- Universals: Machined, Hardened Steel
- C-Hubs: Machined Aluminum with 0∘, 10∘, and 20∘ Caster Adjustment
- Knuckles & Front Covers: Heavy Brass for Low-Slung Weight
- Rear Covers: Machined Aluminum
- Servo Mount: BTA (Behind the Axle) with Skid Plate
- Front Overdrive: 25%
- Rear Link Riser: Integrated
- Spools: Machined, Hardened Steel, Keyed
- Portal Stub Shafts: 6mm with M5 Threads
Suspension & Steering
- Shocks: Reefs XP Aluminum 90mm (Front & Rear)
- Shock Body: Slim 9mm Diameter
- Shock Shafts: Hard Chrome Finished
- Seals: X-Ring Type
- Front Links: 5mm Stainless Steel with Reefs XP Rod-Ends
- Rear Links: 5mm Stainless Steel High Clearance with Reefs XP Rod-Ends
- Servo Horn: Machined Aluminum, Founders Edition Gold Anodized Pro HD
Reefs XPT3 Transmission
- Housing: Machined Aluminum, Founders Edition Gold Anodized
- Gears: Hardened Steel, 48 Pitch
- Output Shaft: Titanium
- Motor Mount: Forward Mounting
- Pinion Compatibility: 11t-20t (48p)
- Front Final Drive Ratio (FDR): 33.75:1 – 61.36:1
- Rear Final Drive Ratio (FDR): 43.59:1 – 79.26:1
Reefs XP Chassis
- Frame Rails: 3mm Carbon Fiber
- Skid Angle: 7∘
- Skid Plate: Narrow 64mm Molded Plastic
- Sliders: Aluminum Plate with Incorporated Cab Mounts
- Winch Mounting: Front and Rear Chassis Locations
- Electronics Trays: Two Centralized Molded Plastic Trays
Reefs Plague Comp Body Set
- Configuration: Can be used as cab-only or with bed sides
- Cab Height: 4.25" (108mm)
- Cab Width: 6.25" (165mm)
- Cab Only Length: 9.875" (250mm)
- Overall Length w/ Bed: 15.75" (400mm)
Reefs 199 Portal Axles
- Housing: Machined Aluminum
- Gears: Machined, Hardened Steel Throughout
- Steering Angle: Up to 60∘
- Axle Shafts: Machined, Hardened Steel, 5mm Pinned
- Universals: Machined, Hardened Steel
- C-Hubs: Machined Aluminum with 0∘, 10∘, and 20∘ Caster Adjustment
- Knuckles & Front Covers: Heavy Brass for Low-Slung Weight
- Rear Covers: Machined Aluminum
- Servo Mount: BTA (Behind the Axle) with Skid Plate
- Front Overdrive: 25%
- Rear Link Riser: Integrated
- Spools: Machined, Hardened Steel, Keyed
- Portal Stub Shafts: 6mm with M5 Threads
Suspension & Steering
- Shocks: Reefs XP Aluminum 90mm (Front & Rear)
- Shock Body: Slim 9mm Diameter
- Shock Shafts: Hard Chrome Finished
- Seals: X-Ring Type
- Front Links: 5mm Stainless Steel with Reefs XP Rod-Ends
- Rear Links: 5mm Stainless Steel High Clearance with Reefs XP Rod-Ends
- Servo Horn: Machined Aluminum, Founders Edition Gold Anodized Pro HD
Reefs XPT3 Transmission
- Housing: Machined Aluminum, Founders Edition Gold Anodized
- Gears: Hardened Steel, 48 Pitch
- Output Shaft: Titanium
- Motor Mount: Forward Mounting
- Pinion Compatibility: 11t-20t (48p)
- Front Final Drive Ratio (FDR): 33.75:1 – 61.36:1
- Rear Final Drive Ratio (FDR): 43.59:1 – 79.26:1
Reefs XP Chassis
- Frame Rails: 3mm Carbon Fiber
- Skid Angle: 7∘
- Skid Plate: Narrow 64mm Molded Plastic
- Sliders: Aluminum Plate with Incorporated Cab Mounts
- Winch Mounting: Front and Rear Chassis Locations
- Electronics Trays: Two Centralized Molded Plastic Trays
Reefs Plague Comp Body Set
- Configuration: Can be used as cab-only or with bed sides
- Cab Height: 4.25" (108mm)
- Cab Width: 6.25" (165mm)
- Cab Only Length: 9.875" (250mm)
- Overall Length w/ Bed: 15.75" (400mm)
The XP10 Plague Founder’s Edition Crawler Kit is $1,399.99 and is available in limited quantities (only 250 will be made) at reefsrc.com.
