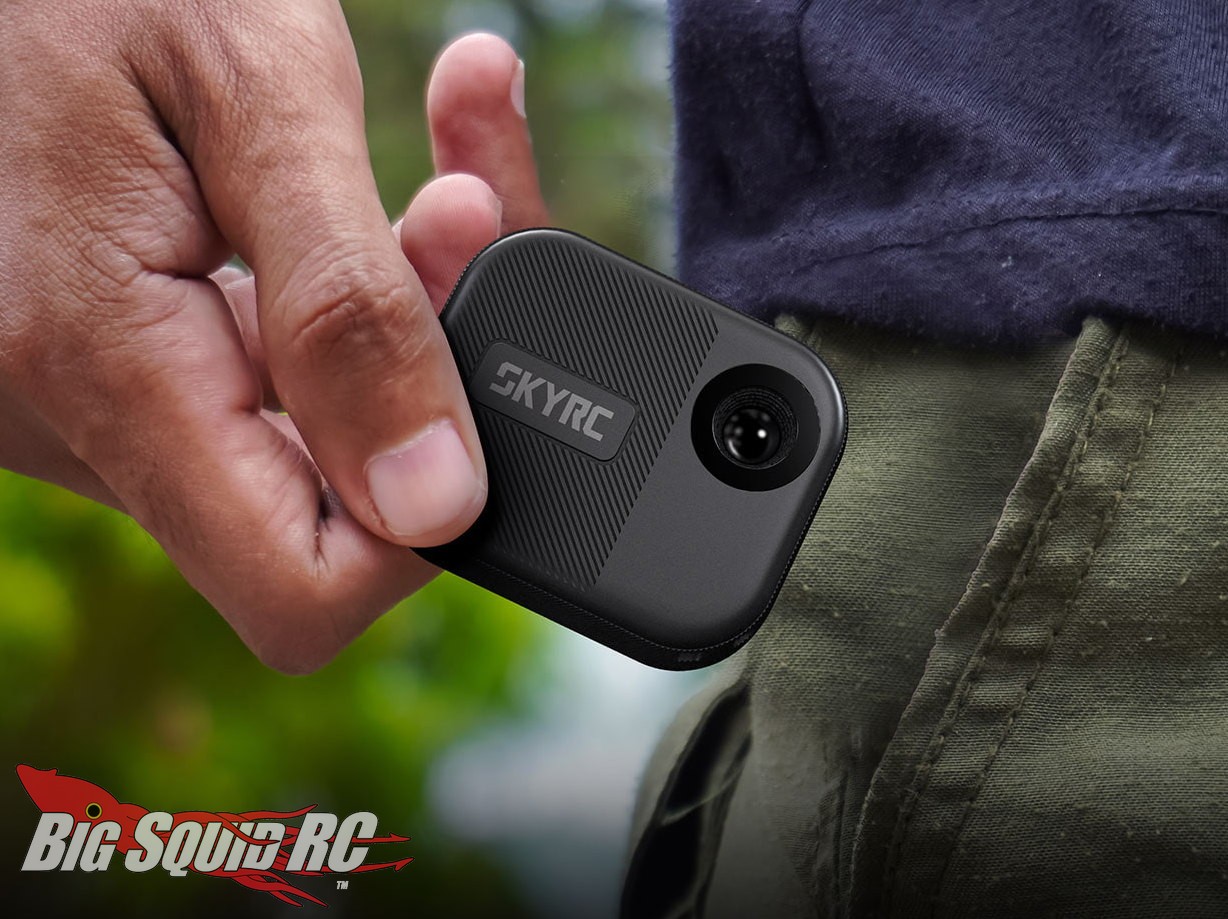

SkyRC ITV500 Mini HeatVision

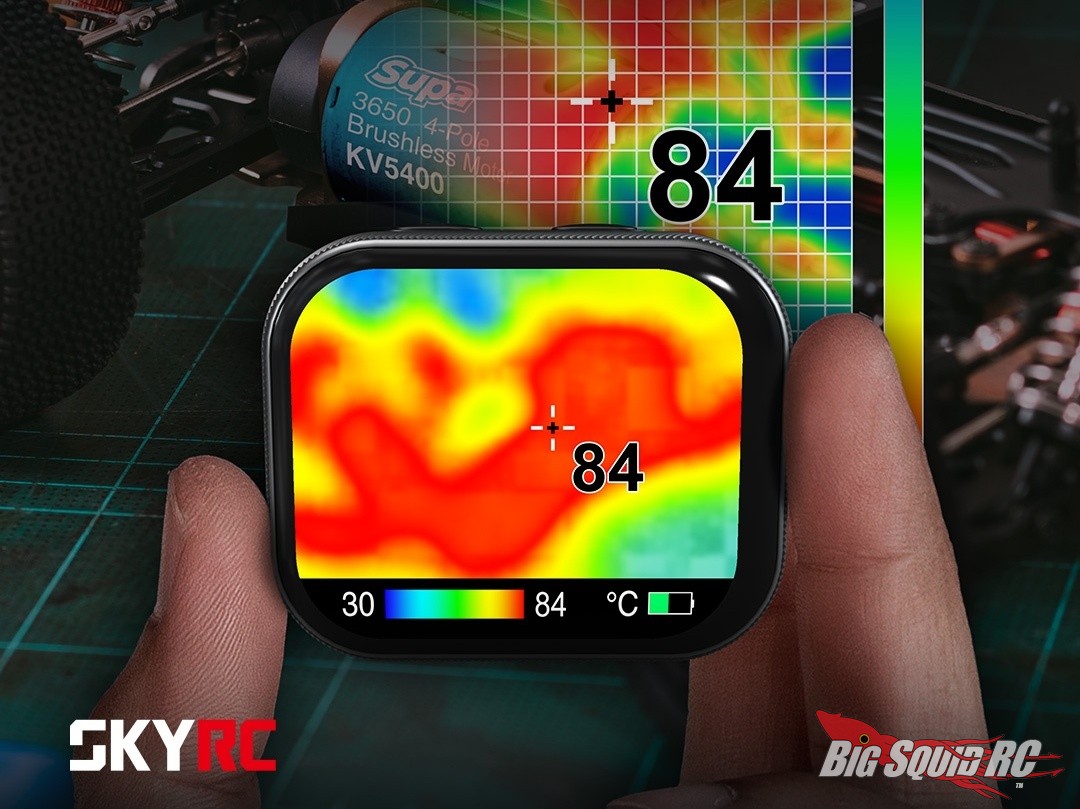

Over at SkyRC they have announced the ITV500 Mini HeatVision. What exactly is the Mini HeatVision you ask? It’s a thermal imaging tool that can show you hot spots in your wiring, motor, battery, ESC, bearings, and even tires. If you are one of those guys that is super into the wrenching side of the hobby, this tool is going to be a must-have for your toolbox. Here are some highlights-
* Detects FIR energy & converts it into contact-free temperature data
* Weight – 38 grams
* Size – 46 × 38 × 20.1mm
* Bright 1.83″ touch display 240 × 284 pixels
* Rainbow, Iron Red, or White Hot — choose your thermal style
* Switchable between °C / °F / K
* Adjustable brightness
* Fine-tunable emissivity
* Six-language interface
* Auto power-off option
* IR Resolution – 32 × 24 pixels
* Thermal Sensitivity – 100mK @ 1Hz
* Field of View – 55° × 35°
* Frame Rate – 8 FPS
* Battery – 600 mAh rechargeable lithium battery
* Temperature Measurement Range: -20°C(-4℉) ~ 300°C(572℉)
* Measurement Accuracy: ±2.0℃(3.6℉)
The SkyRC Mini HeatVision is priced right around $125 and has a part number of #SK-500047.
